SKU: 26021

Regular price$499.99
/

Variant Bullets

* Second focal plane LPVO designed for CMP Service Rifle and NRA High Power Rifle Competition Use.

* Exclusive MC-333 multi-coatings provide exceptional light transmission with reduced flare.

* 30mm aluminum tube provides waterproof, shockproof and fog-proof performance that can handle any environment at the range.

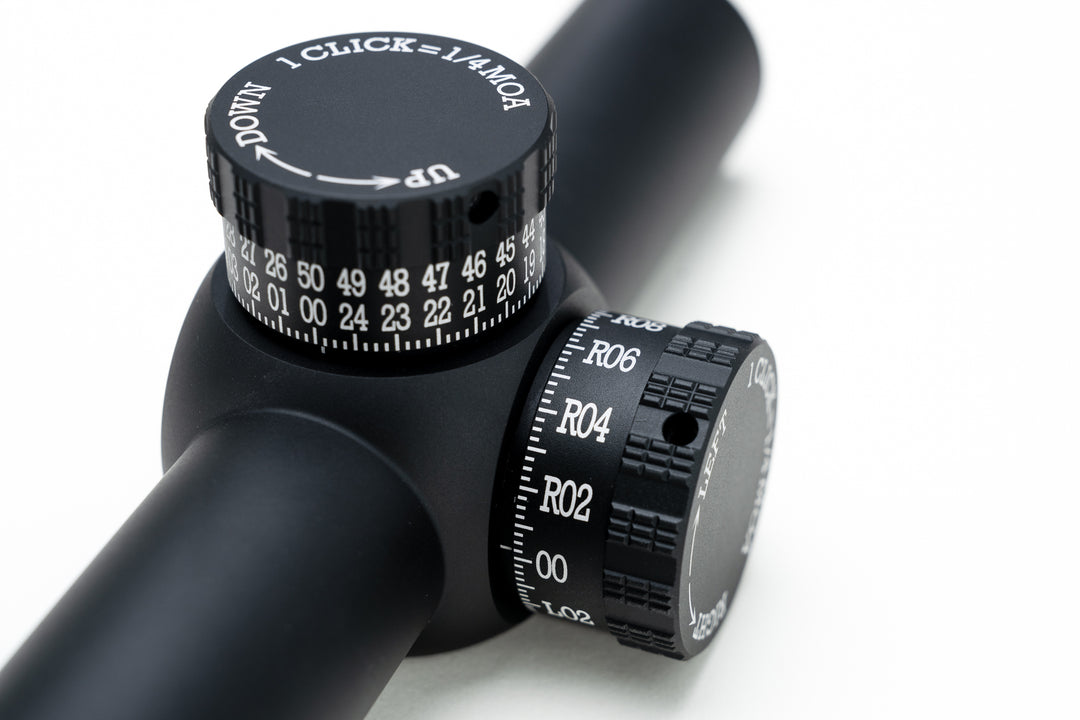

* Tactical turrets with solid, tactile audible clicks and bright and easy to read numbers.

* Sightron's Lifetime Performance Guarantee for years of worry-free performance.

Description

The S-TAC 1-4.5x24 SR1 Service Rifle Scope is the ultimate tool for competitive shooters that demand the very best optical technology. Designed and engineered for Civilian Marksmanship Program’s Service Rifle and NRA High Power Rifle competition use, the S-TAC 1-4.5x24 SR1 utilizes Sightron custom optical glass with exclusive MC-333 lens multi-coatings. This combination provides exceptional light transmission all while reducing flare so the shooter can easily acquire their target. Housed in a durable 30mm aircraft aluminum tube, the S-TAC 1-4.5x24 SR1 is engineered to withstand up to 1,000G’s of shockproof performance, and is nitrogen charged for waterproofing up to IPX7 standards. Sightron’s exclusive ExacTrack erector tube system provides consistent, reliable, and repeatable adjustments. The scope provides an impressive 100 MOA elevation travel and 60 MOA of windage travel in ¼ MOA clicks. The new SR1 reticle provides a clean sight picture with a 9 MOA circle surrounding a ½ MOA aiming dot. One MOA stadia lines on the horizontal and lower vertical areas help draw the eye to the center of the reticle.

The Sightron S-TAC 1-4.5X24 SR1 includes the following:

Scope

Instruction Manual

1.5mm Allen Wrench

Lens Cleaning Cloth

  • Features

    ExacTrack W&E System

    Never experience drift with Sightron's patented windage and elevation adjustment technology. It provides proper alignment between the adjustments and the erector tube by maintaining the same constant and accurate point of pressure at zero or extreme adjustments.





    Exclusive Optical Design



    Using the right materials for the right applications, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy, while delivering excellent light transmission and best-in-class resolution and sharpness.

    Exclusive MC-333 Multi-Coating Technology

    Exclusive 3 Layer multi-coating process employs a new and revolutionary lens coating technology applied to both surfaces of the lenses for excellent anti-reflection performance and the highest light transmission.



    Second Focal Plane Reticle

    The reticle size remains constant at any zoom range.

    Reticle Material

    Etched wire reticle for a superior viewing experience.

    Shockproof

    1,000G Shock rating supports even the highest calibers.

    Waterproof

    Rated at IPX7 waterproof standards.

    Fogproof

    Nitrogen gas charged for a lifetime of fog free use.

    Tube Construction

    Milled from a single piece of lightweight, industrial grade aluminum.

  • Specifications
    Magnification 1-4.5X
    Objective Lens Diameter 24mm
    Eye Relief 3.9 - 3.3 inches
    Field of View 110.0 - 25.3 ft @100 yds
    Tube Size 30mm
    Turret Style Tactical
    Zero Stop No
    Click Value 1/4 MOA
    Minutes Per Revolution 25 MOA
    Max Elevation Adjustment 100 MOA
    Max Windage Adjustment 60 MOA
    Parallax Setting Parallax Free (150 yards)
    Focus Type N/A
    Reticle Type SR1
    Focal Plane Second
    Illumination No
    Finish Matte Black
    Waterproof Yes - IPX 7 rated
    Anti-Reflection Tech Exclusive MC-333 Multi-coating
    Fog Proof Yes
    Length 10.3 inches
    Weight 20.8 oz
    Sunshade N/A
    Item Number 26021
    UPC Code 793139260215
    Model Name S-TAC1-4.5X24
    Instruction Manual (PDF) DOWNLOAD
    Reticle Instructions (PDF) DOWNLOAD



  • Reticle Details

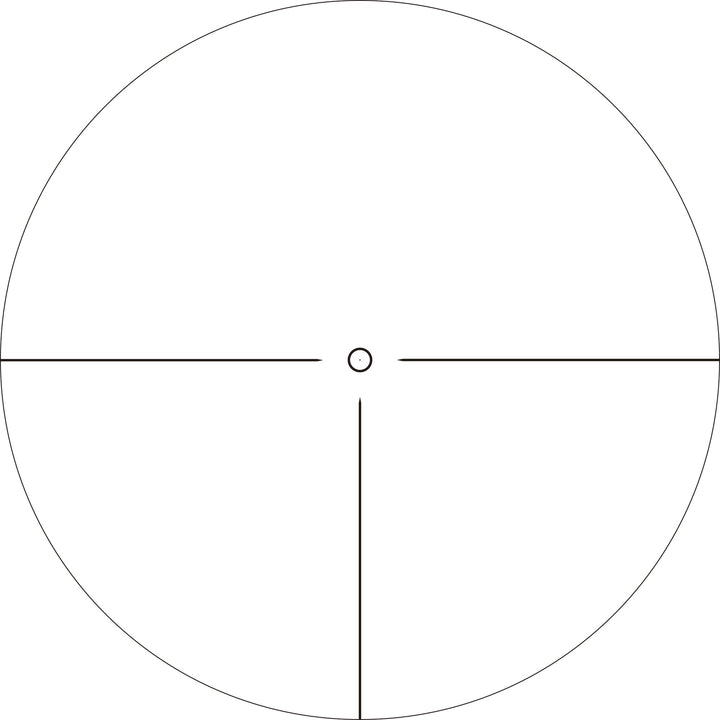

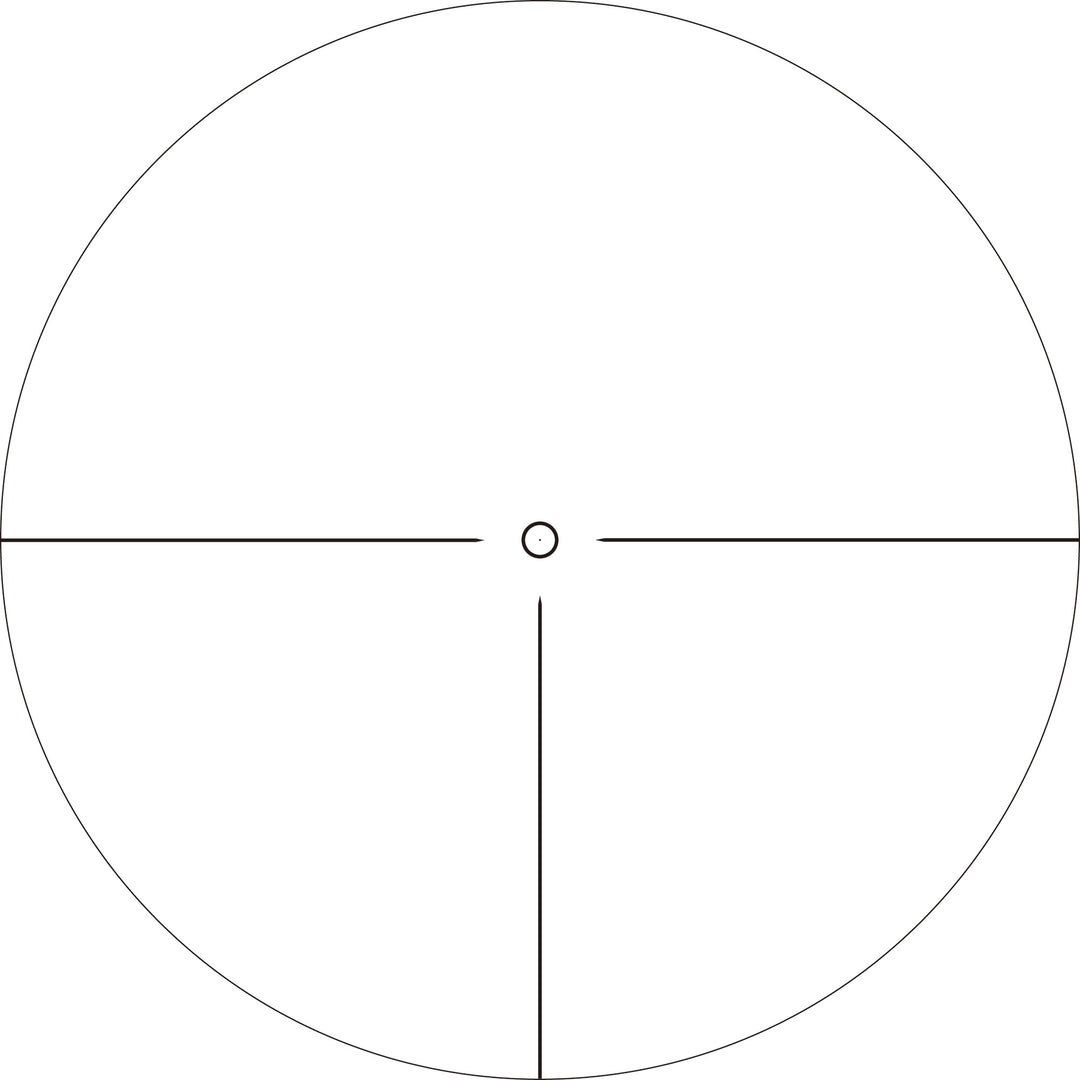

    SR1 Reticle Diagram



    The SR1 reticle was designed with NRA and CMP competition shooter's needs in mind. The clean reticle features 1 MOA horizontal stadia lines to assist with windage and holdover as well as assisting in keeping the scope level. There is also a lower 1 MOA stadia line, pointing up to a 9 MOA circle with a 1/2 MOA aiming dot.

    SR1 Measured in MOA - 1X at 100 Yards

    A B C D E
    135 67.5 40.5 4.5 2.25

    SR1 Measured in MOA - 4.5X at 100 Yards

    A B C D E
    30 15 9 1 0.5
  • Scope Dimensions

    S-TAC 1-4.5X24 SR1

    sightron rifle scope dimensions graphic

    Dimensions in Inches
    A B C D E F G H
    10.3 6.5 2.7 2.2 3.7 N/A 1.2 1.8
