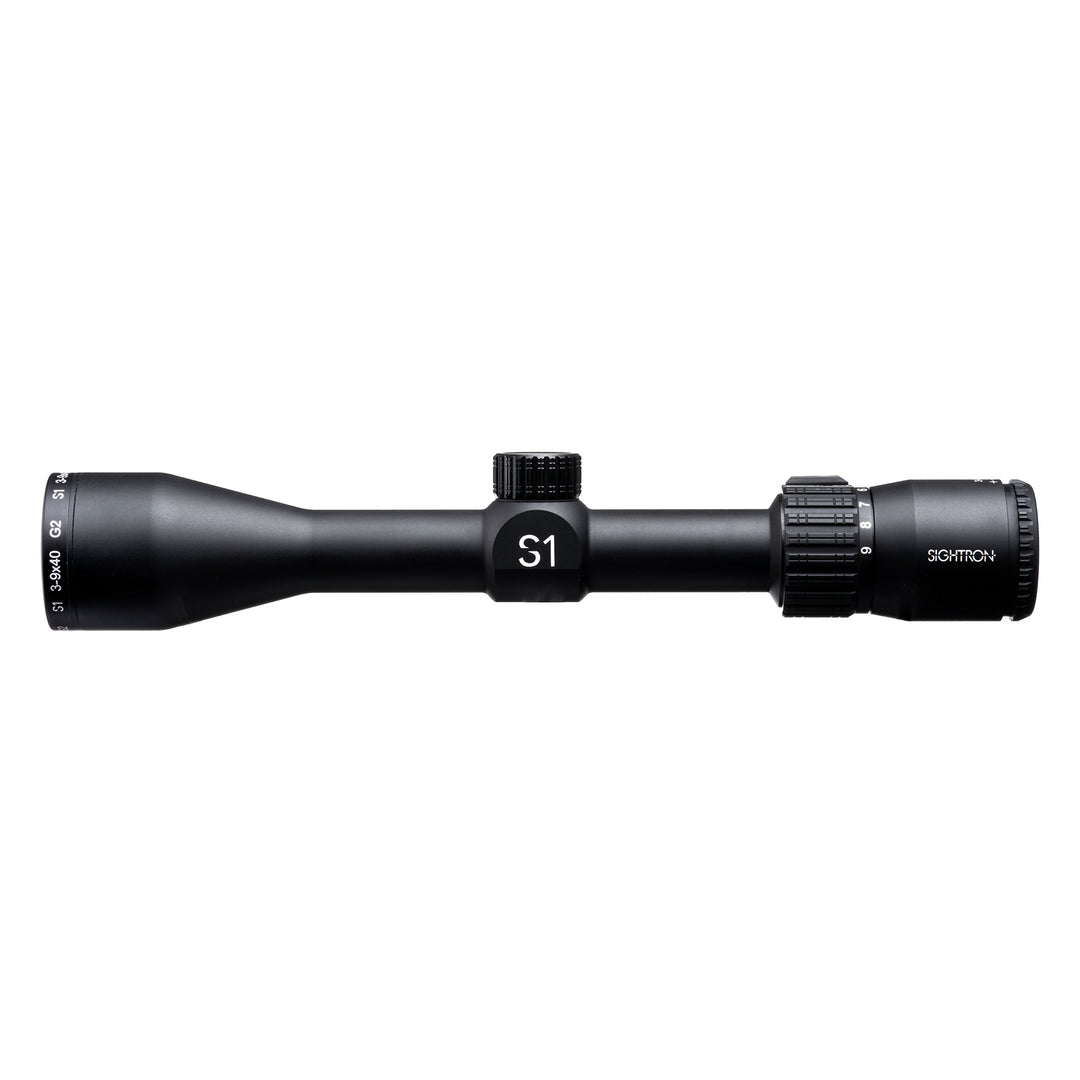

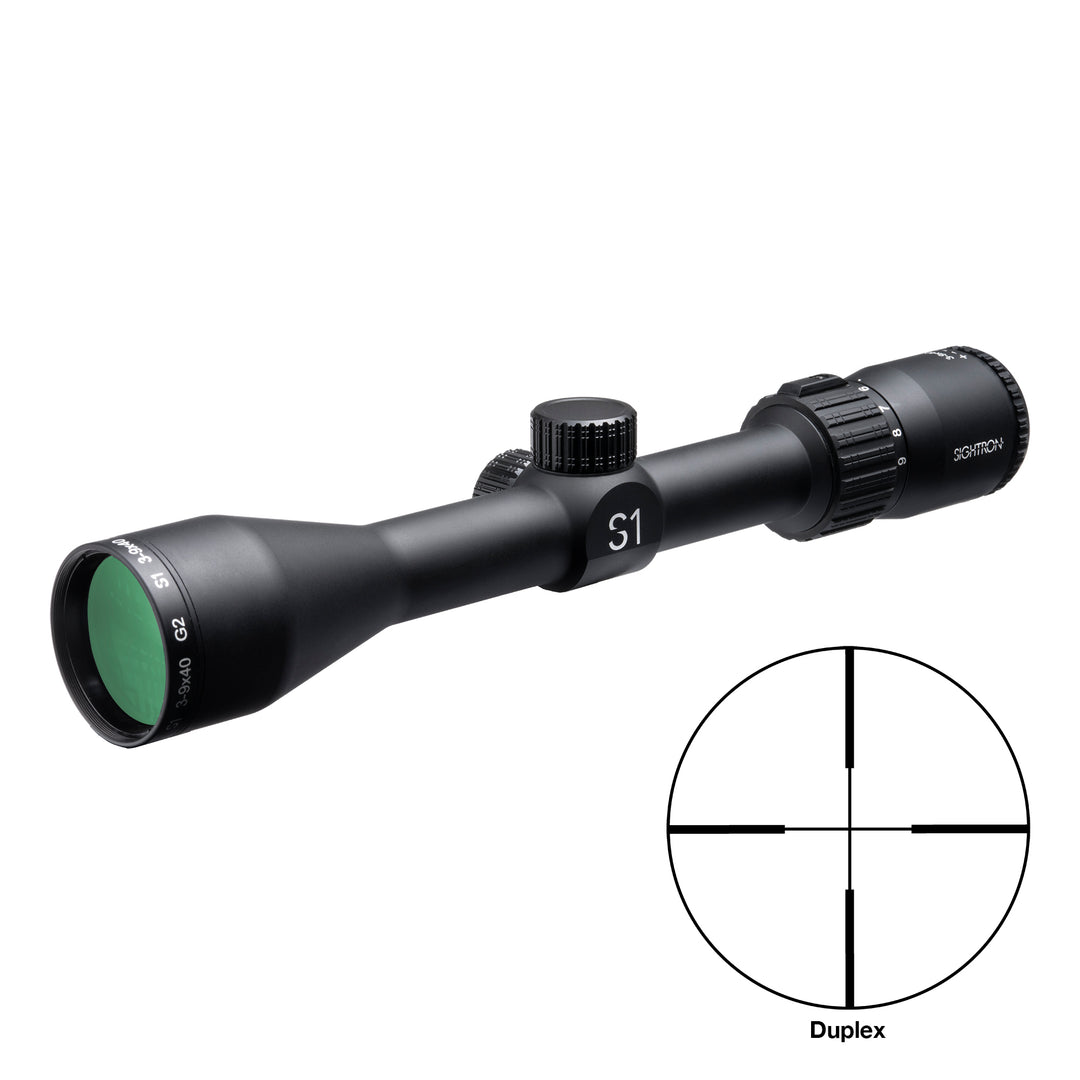

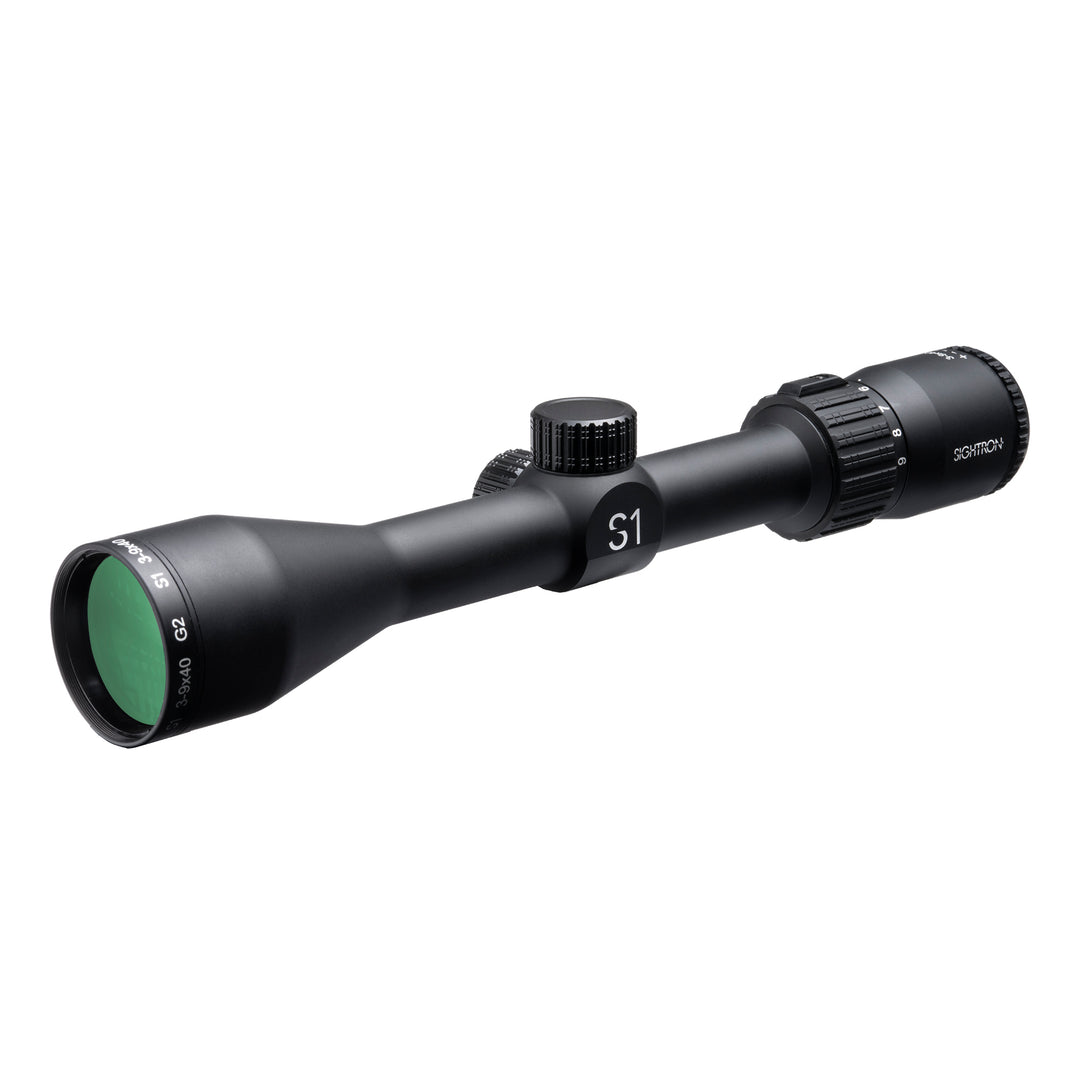

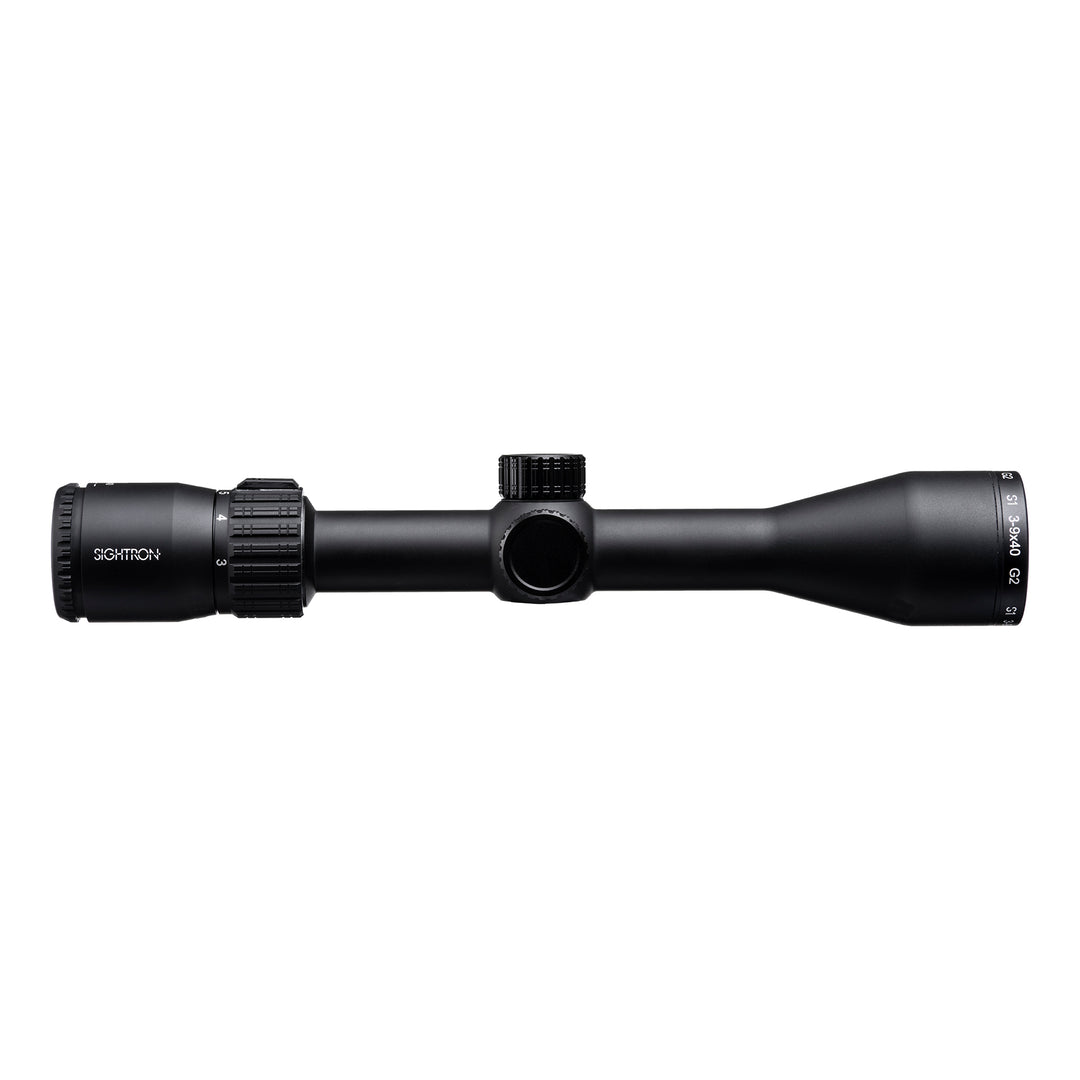

S1 3-9x40 G2

S1 3-9x40 G2

SKU: 32001

Regular price$249.99
/

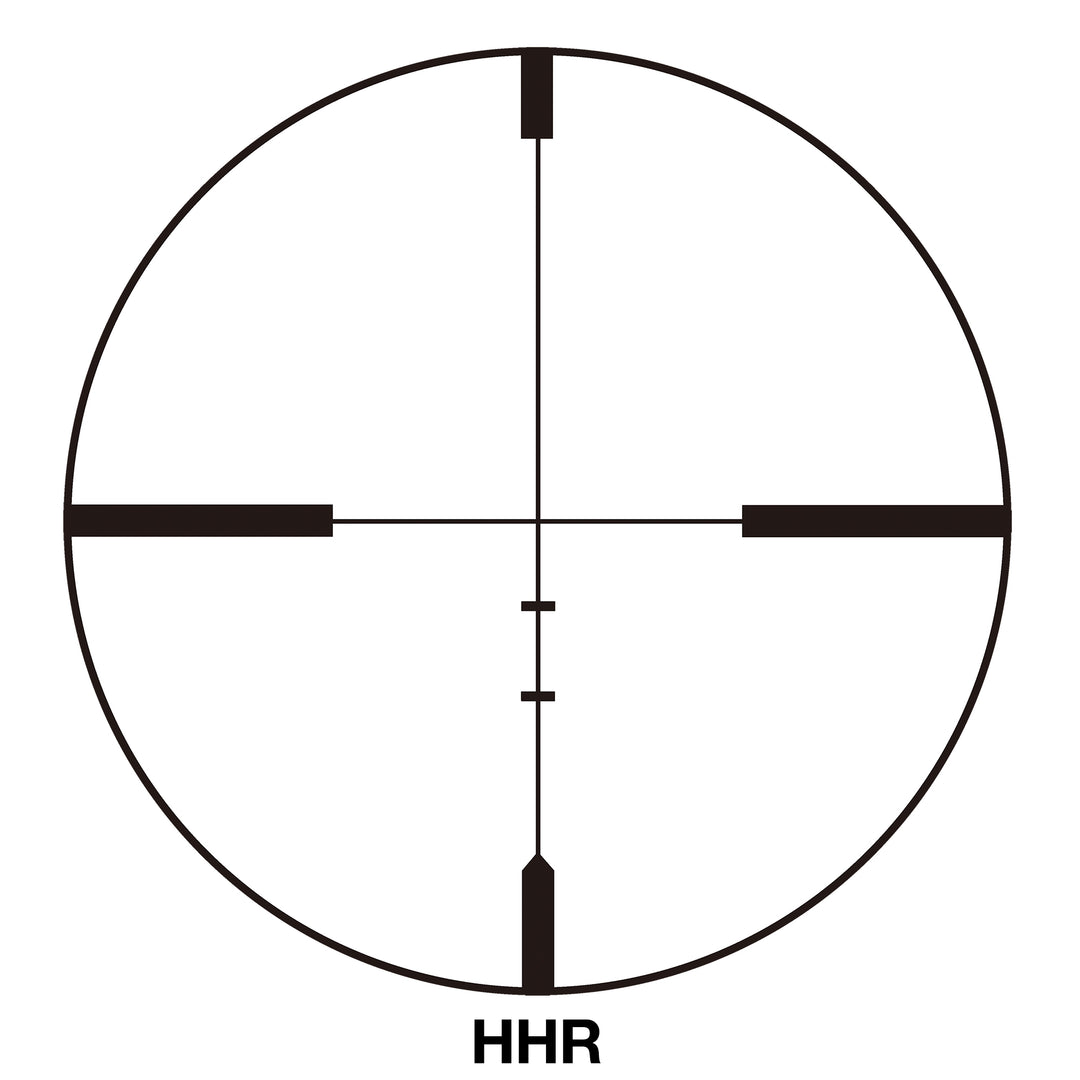

RETICLE

Variant Bullets

  • NOW IN STOCK
  • NEW Classic Hunting Riflescope Modernized
  • Compact, Lightweight 1-inch Aircraft Aluminum Tube
  • Waterproof, Shockproof & Fogproof Design
  • Classic Duplex Reticle Design
  • Backed by Sightron’s Lifetime Performance Guarantee

Description

Sightron designers gave the classic hunting riflescope a complete overhaul when creating the Sightron S1 3-9x40mm G2 riflescope. Using modern optical designs and manufacturing techniques, the S1 3-9x40mm G2 provides clear and sharp views in just about any lighting due to Sightron’s all-glass lenses and exclusive MC-333 lens coatings. Sightron’s Precision Focus Eyepiece provides a customizable sight picture with extended eye relief. A compact, lightweight 1-inch aircraft aluminum tube houses an all-new erector tube system which is nitrogen charged, O-ring sealed, providing IPX7 waterproof and fogproof performance, and construction is 1,000G rated shockproof. All of this provides the ability to take the hunt to the field earlier and later than ever and handle whatever obstacles Mother Nature throws at you.



The Sightron S1 3-9x40mm G2 includes the following:



Scope

Instruction Manual

Set of Lens Covers

Lens Cleaning Cloth

  • Features
    Exclusive Optical Design Using the right materials for the right application, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy,  deliver excellent light transmission, and best-in-class resolution and sharpness.
    Exclusive MC-333 Multi-Coating Sightron’s exclusive MC-333 multi-coated glass lenses provide clear and sharp viewing at any zoom range, while reducing flare, increasing contrast and light transmission providing additional time in the field.
    Second Focal Plane Reticle The reticle size remains constant at any zoom range.
    Reticle Material Wire reticle.
    Shockproof 1,000G Shock rating supports even the highest calibers.
    Waterproof Rated at IPX7 waterproof standards.
    Fogproof Nitrogen gas charged for a lifetime of fog free use.
  • Specifications
    Magnification 3-9x
    Objective Lens Diameter 40mm
    Eye Relief 4.1 in - 3.3 in
    Field of View 40.4 ft - 13.3 ft
    Tube Size 1-inch

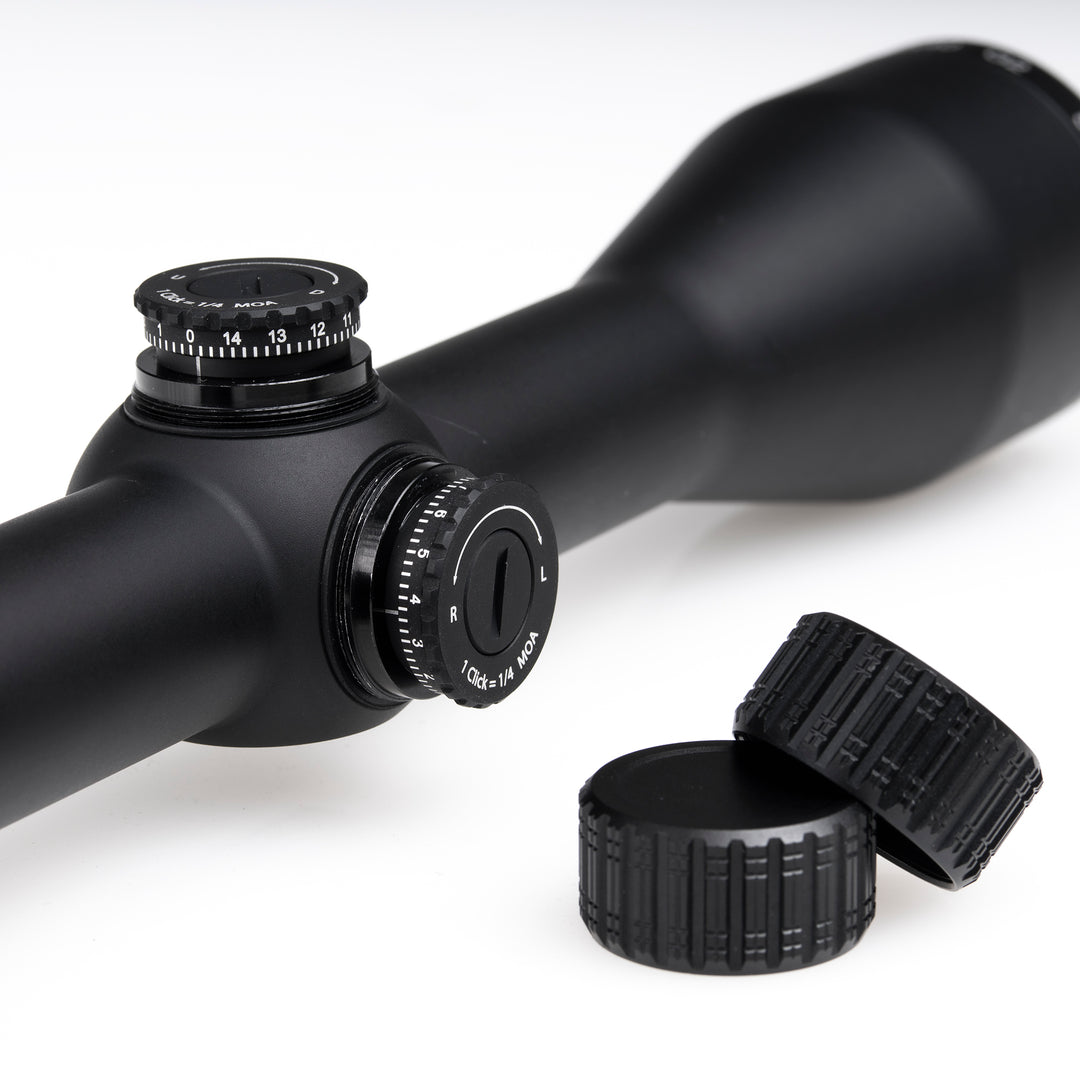

    Turret Style Capped Hunting
    Zero Stop No
    Click Value 1/4 MOA
    Minutes Per Revolution 15 MOA
    Max Elevation Adjustment 70 MOA
    Max Windage Adjustment 70 MOA
    Parallax Setting Parallax Free (100 Yards)
    Focus Type Fixed
    Reticle Type Duplex
    Focal Plane Second Focal Plane
    Illumination No
    Finish Matte Black
    Waterproof Yes - IPX 7 rated
    Anti-Reflection Tech MC-333 Multi-Coatings
    Fog Proof Yes
    Length 11.9 inches
    Weight 13.6 ounces
    Sunshade Not Included
    Item Number 32001
    UPC Code 793139320018
    Model Name S1 3-9x40 G2 Duplex
    Instruction Manual (PDF) DOWNLOAD
    Reticle Instructions (PDF) N/A



  • Reticle Details

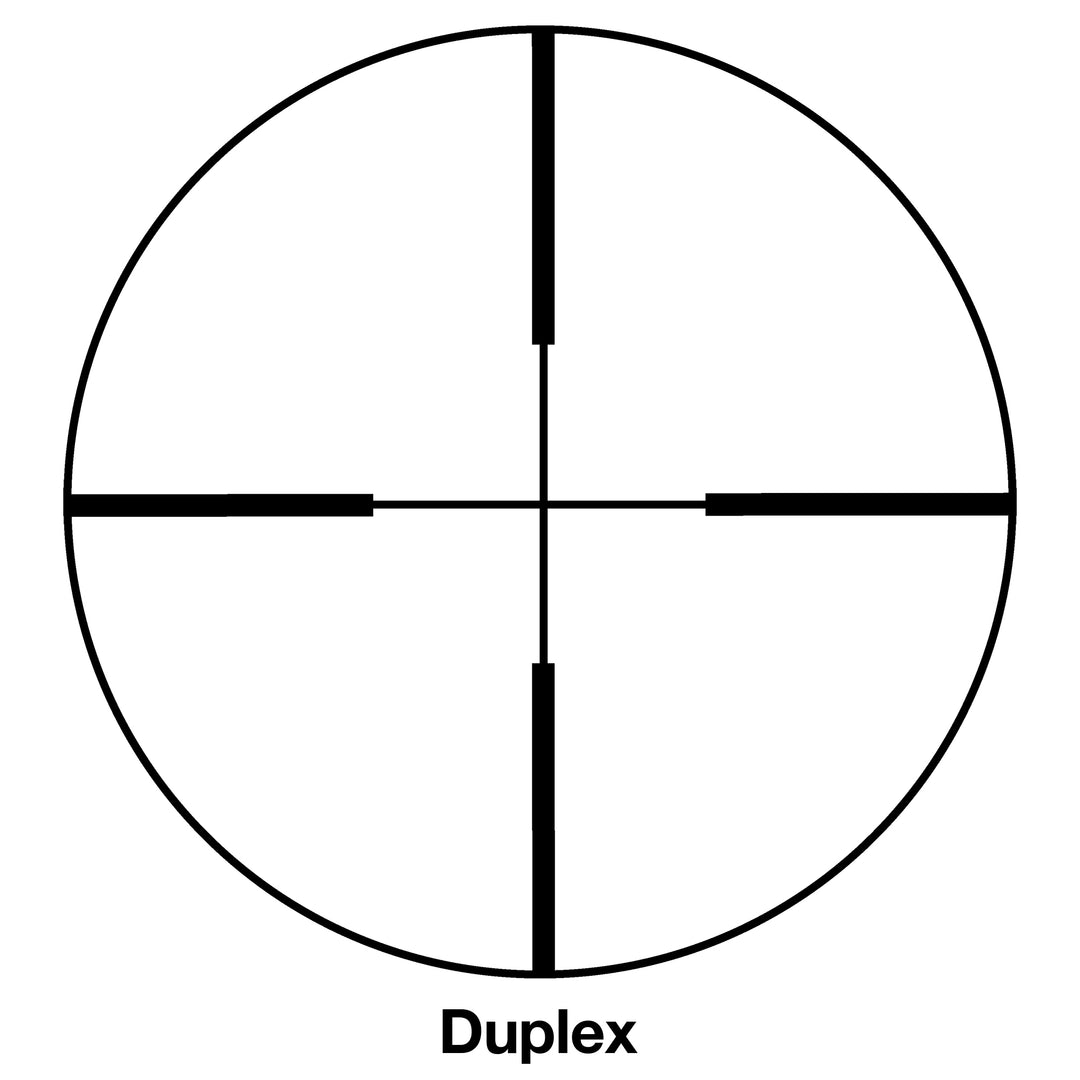

    Duplex Reticle

    The duplex reticle is the oldest and most popular reticle for hunting in the world. The reticle features thick bars on the vertical and horizontal plane which taper to a thinner section as the near the center intersection of the center of the scope.  There are many variations to the design and can be used in ranging game at hunting distances.

    Duplex Measured in MOA - 3x at 100 yards

    A B C
    40 0.66 2.66



    Duplex Measured in MOA - 9x at 100 yards

    A B C
    13.3 0.22 0.88
  • Scope Dimensions

    S1 3-9x40 G2

    sightron rifle scope dimensions graphic

    Dimensions in Inches

    A B C D E F G H
    11.9 5.5 2 2 3.2 3.2 1.9 1.7
